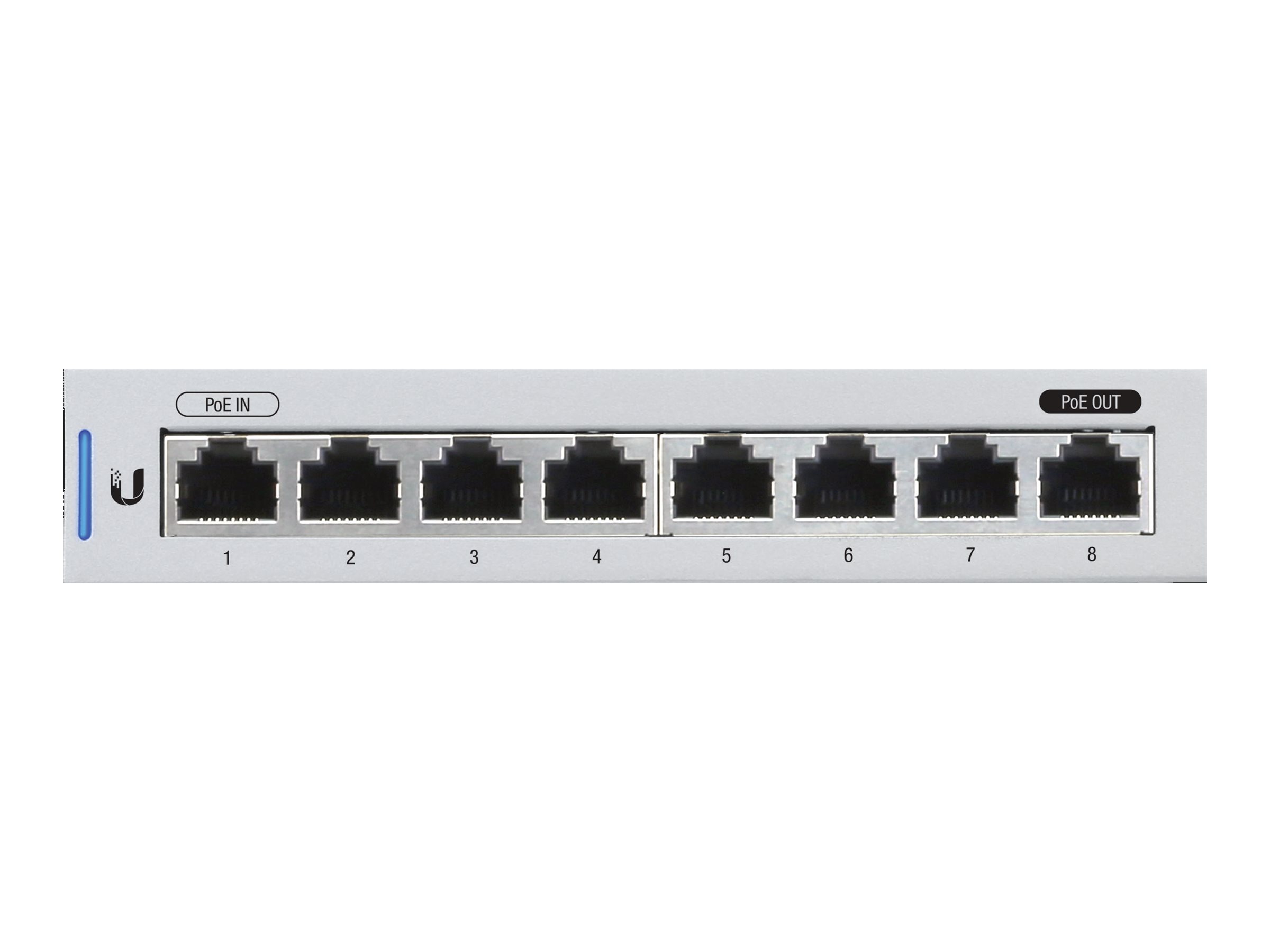

UniFi Switch US-8 - Switch

UniFi Switch US-8 - Switch

Description x RJ-45 - 1 PoE Passthrough Port - 12W

    no img

    Do you have any questions about the product?

    Speak with one of our account managers and we will give you the answer you need regarding this product.

    Our account managers are online Monday - Friday from 9:00 - 17:00

    Data sheet : UbiQuiti UniFi Switch US-8 - Switch

    UbiQuiti UniFi Switch US-8 - Switch
    Managed - 7 x 10/100/1000 + 1 x 10/100/1000 (PoE Passthrough) - desktop - PoE Passthrough - DC power
    GroupNetwork Equipment
    ManufacturerUbiQuiti
    Manufacturer item no.US-8
    EAN/UPC0810354026171
    Description
    The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
    Main features
    Product DescriptionUbiquiti UniFi Switch US-8 - switch - 8 ports - Managed
    Device TypeSwitch - 8 ports - Managed
    SubtypeGigabit Ethernet
    Ports7 x 10/100/1000 + 1 x 10/100/1000 (PoE Passthrough)
    Power Over Ethernet (PoE)PoE Passthrough
    PerformanceNon-blocking switching capacity: 8 Gbps ¦ Switching capacity: 16 Gbps ¦ Forwarding rate: 11.9 Mpps
    Features24KV ESD Protector
    Compliant StandardsIEEE 802.3af, IEEE 802.3at
    PowerDC 48 V
    Dimensions (WxDxH)14.8 cm x 9.95 cm x 3.07 cm
    Weight432 g
    Extended details
    General
    Device TypeSwitch - 8 ports - Managed
    Enclosure TypeDesktop
    SubtypeGigabit Ethernet
    Ports7 x 10/100/1000 + 1 x 10/100/1000 (PoE Passthrough)
    Power Over Ethernet (PoE)PoE Passthrough
    PerformanceNon-blocking switching capacity: 8 Gbps ¦ Switching capacity: 16 Gbps ¦ Forwarding rate: 11.9 Mpps
    Features24KV ESD Protector
    Compliant StandardsIEEE 802.3af, IEEE 802.3at
    Status IndicatorsPoE, link/activity/speed
    Expansion / Connectivity
    Interfaces6 x 1000Base-T RJ-45 ¦ 1 x 1000Base-T RJ-45 PoE input ¦ 1 x 1000Base-T RJ-45 PoE Passthrough
    Power
    Power DeviceExternal power adapter
    Voltage RequiredDC 48 V
    Power Consumption Operational12 Watt
    FeaturesPoE powered
    Miscellaneous
    Compliant StandardsIC, FCC, SGCC, ETS 300 019-1-4
    Dimensions & Weight
    Width14.8 cm
    Depth9.95 cm
    Height3.07 cm
    Weight432 g
    Manufacturer Warranty
    Service & SupportLimited warranty - parts and labour - 1 year
    Environmental Parameters
    Min Operating Temperature-5 °C
    Max Operating Temperature45 °C
    Humidity Range Operating5 - 95% (non-condensing)
    Technical data © 1WorldSync. Subject to technical modifications and errors.
